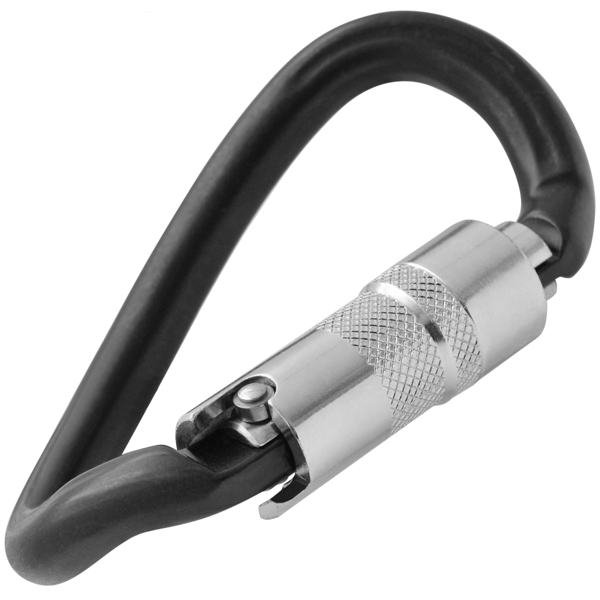

Special “helical-shaped” connector with a twisted carbon steel body and circular bar, a must-have when an “offset” load is required.
It permits 90° rotation of any connected device (descenders, rope clamps, fall arresters, etc.), optimizing the operating alignment.
Available with Auto Block (3 movements) and Twist Lock (2 movements) sleeve, conform to CE or ANSI standards.
High quality product, made in Italy!
*Testing done on this device satisfy the performances requirements posed by NFPA1983:2017
Material: Carbon steel
Locking System: Tri Lock
MBS (kN, Major Axis): 40
MBS (kN, Minor Axis): 16
MBS (kN, Gate Open):12
Dimensions (mm): 108x65
Weight (g): 230
Gate Opening (mm): 18
Certification: NFPA-G*ANSI/ASSE Z359.12
