Designed for use in any industry where loads may be dropped onto rigging with considerable impact forces. The combination of high quality materials and advanced production processes has ensured a rope friendly, durable, robust block that looks amazing and performs even better. Lightweight in mass but not strength, our Impact Blocks have passed incredible dynamic, torsion and static tests - a true testament to their strength to weight ratio.

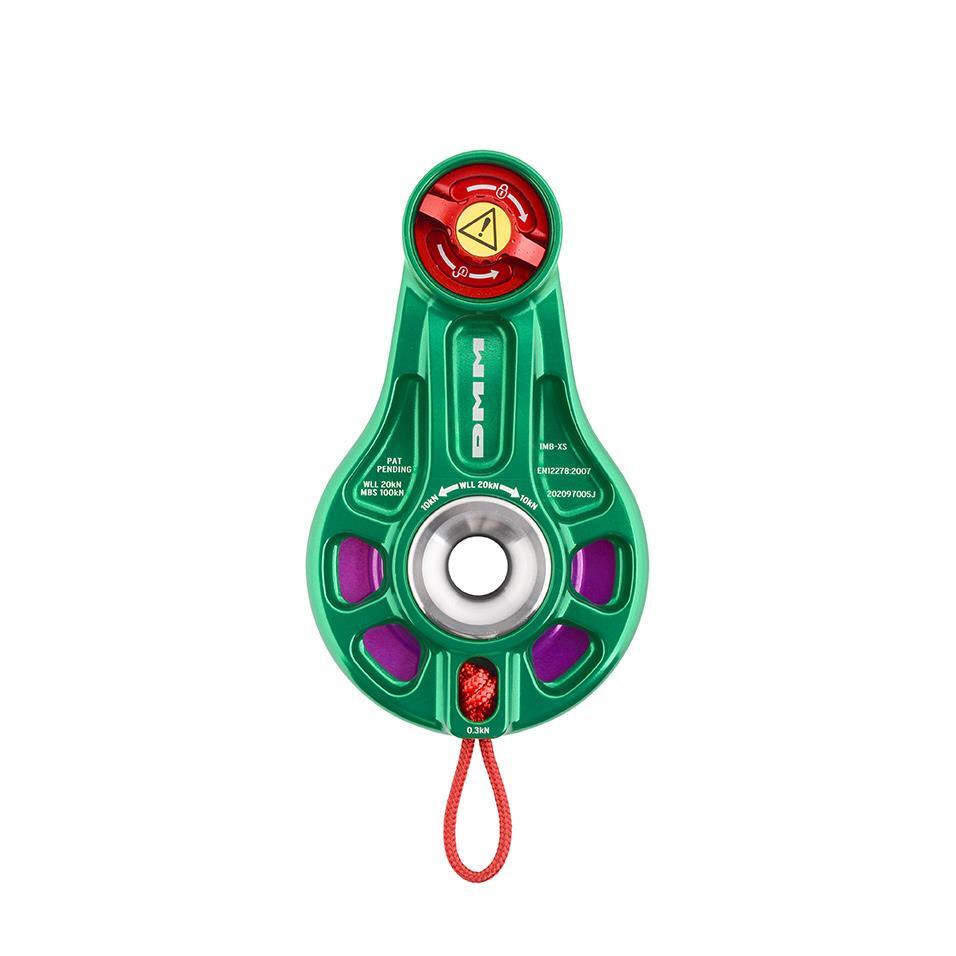

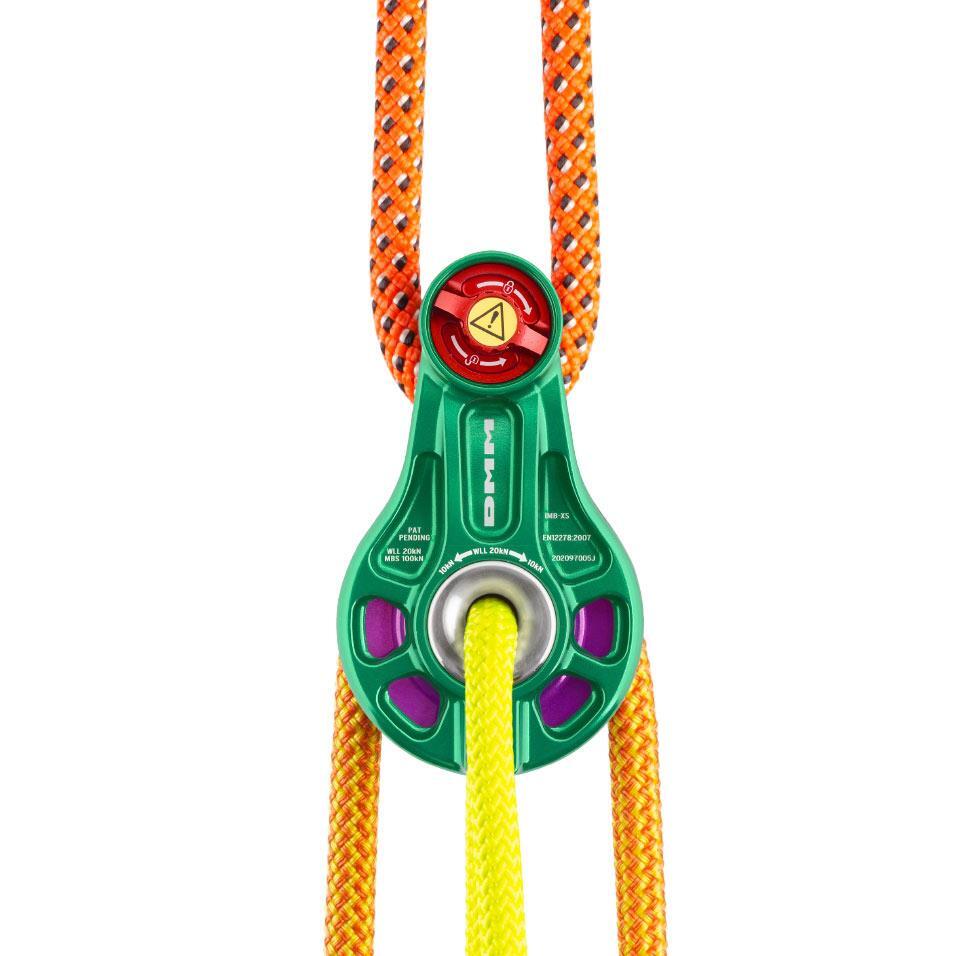

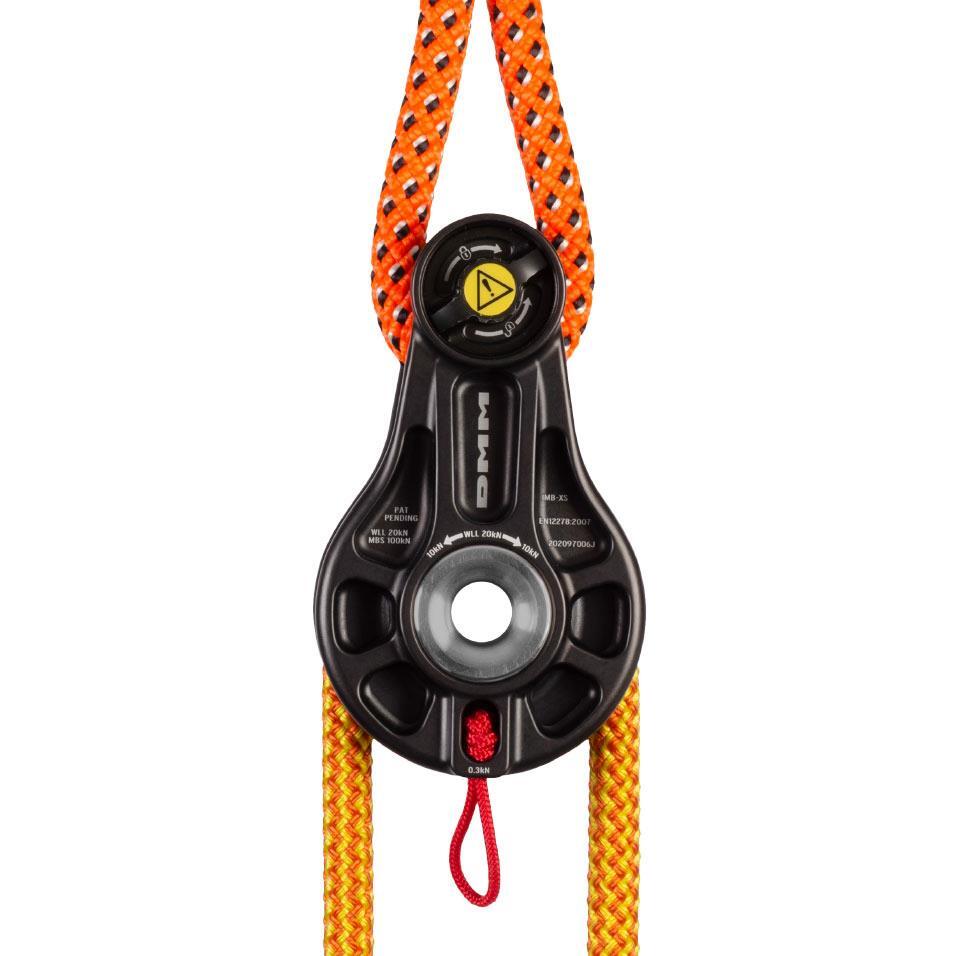

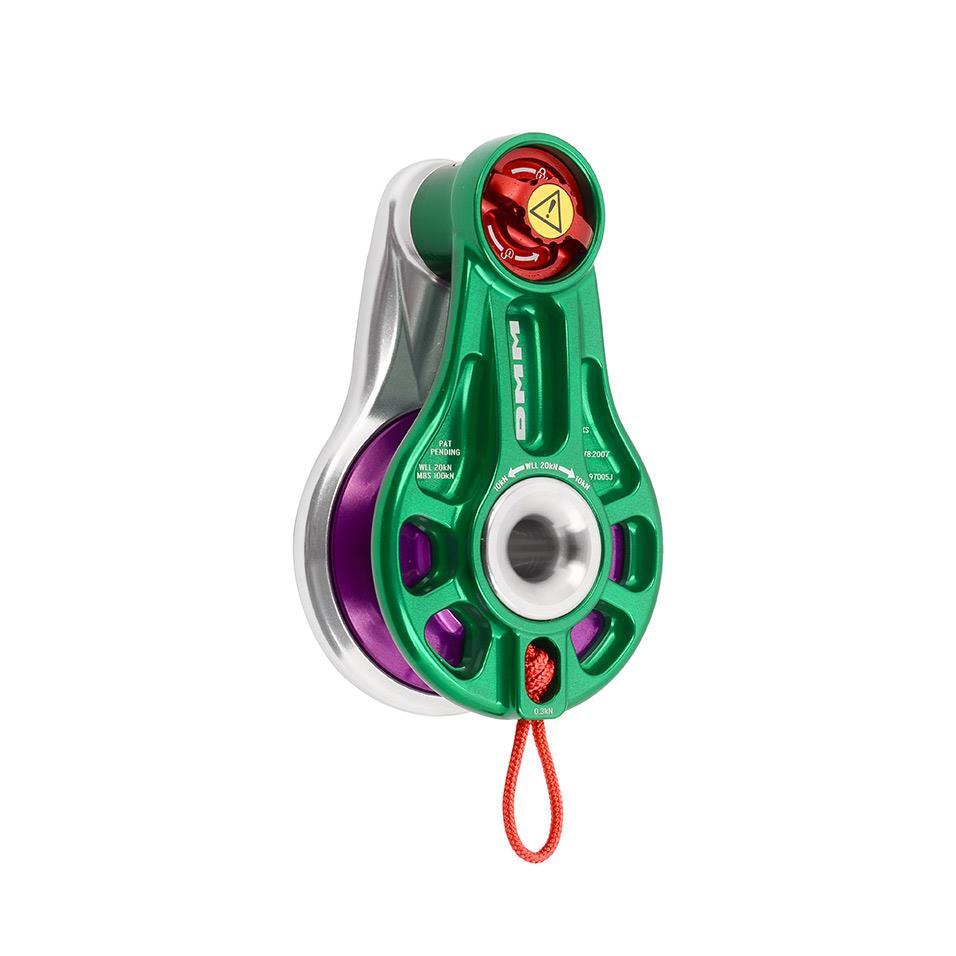

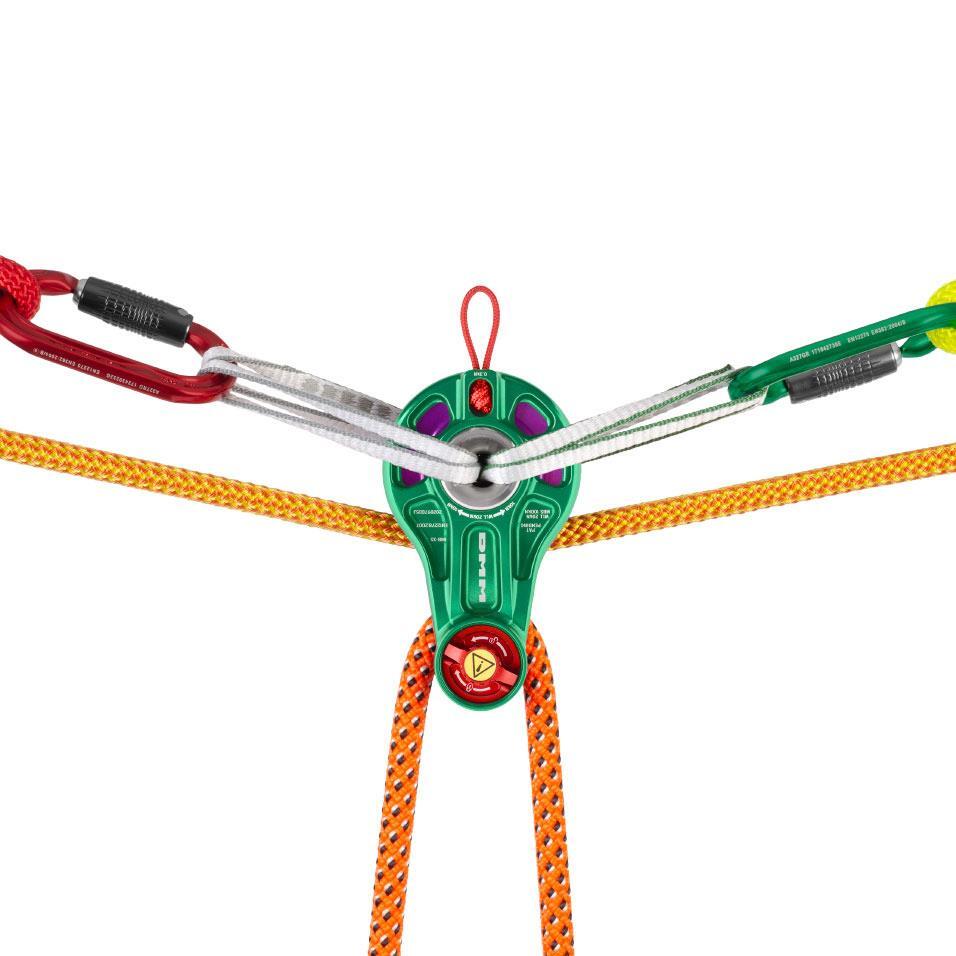

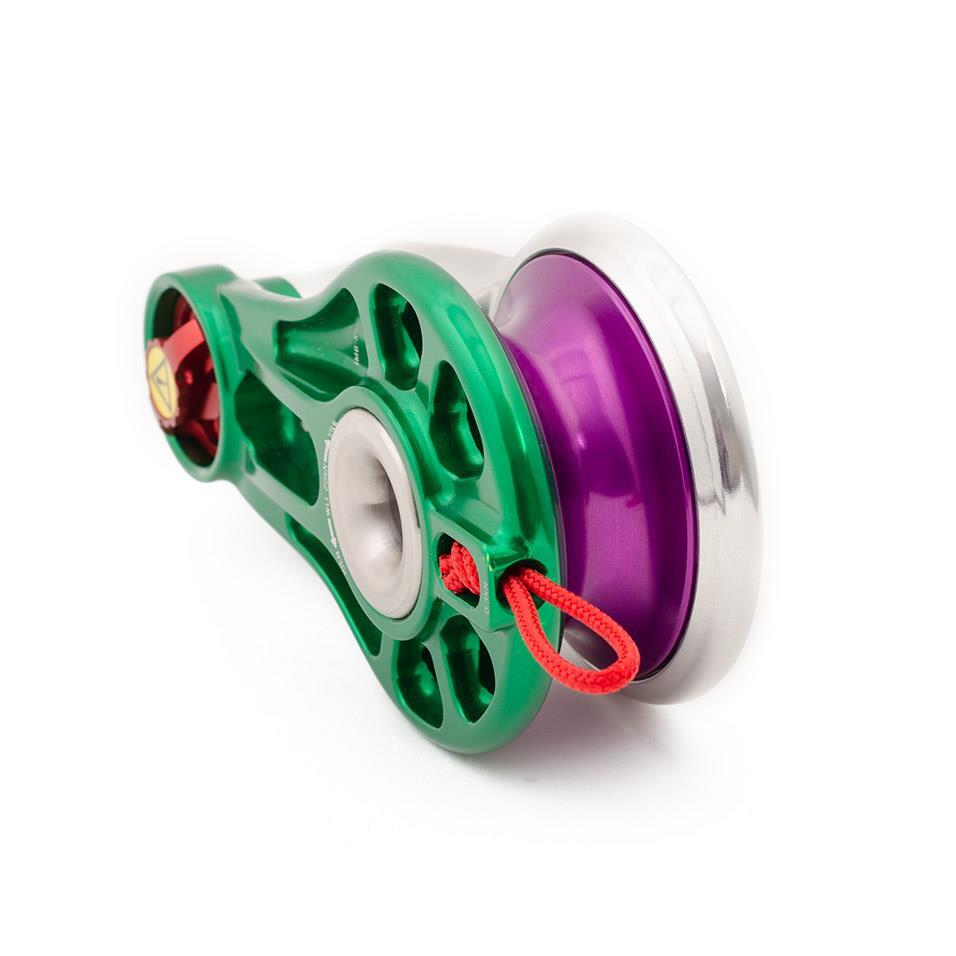

The next generation Impact Block XS has additional features from its unique and doubly secure interlocking anchor bollard, to the highly efficient oversized ball bearings, this is a block with a difference. Designed to combine lightweight and compact with high performance, the Impact Block XS will become your best friend for redirect rigging, winching and snatching stem wood. In addition to highly evolved fairlead flares, the sheave is integrated with the side plates to ensure seamless transitions for your rigging line, while the all-new hollow axle design facilitates complex rigging configurations and allows for maintenance such as servicing of the bearings or replacement of the sheave (hollow axle max. rope diameter, XS: 10mm, L: 10mm). Validated for long term use in the toughest of environments with the most demanding of operators, robustness and resilience are already proven.
Compact, lightweight and highly efficient
Double security at the anchor bollard – interlocking bollard features and threaded axle
Large sheave diameter and efficient bearings make this block ideal for both everyday rigging and winch operations (e.g. with capstan winches)
Hollow axle on XS (10mm diameter) and L (20mm diameter) allows for a rope or sling additional applications
Hauling loop simplifies hauling, transfer and storage
Highly evolved fairleads flairs help maintain efficiency even in suboptimal set ups
Serviceable by manufacturer e.g. bearing replacement
Dimensions: 180 x 100 x 70mm
Rope Diameter: 16mm Max
